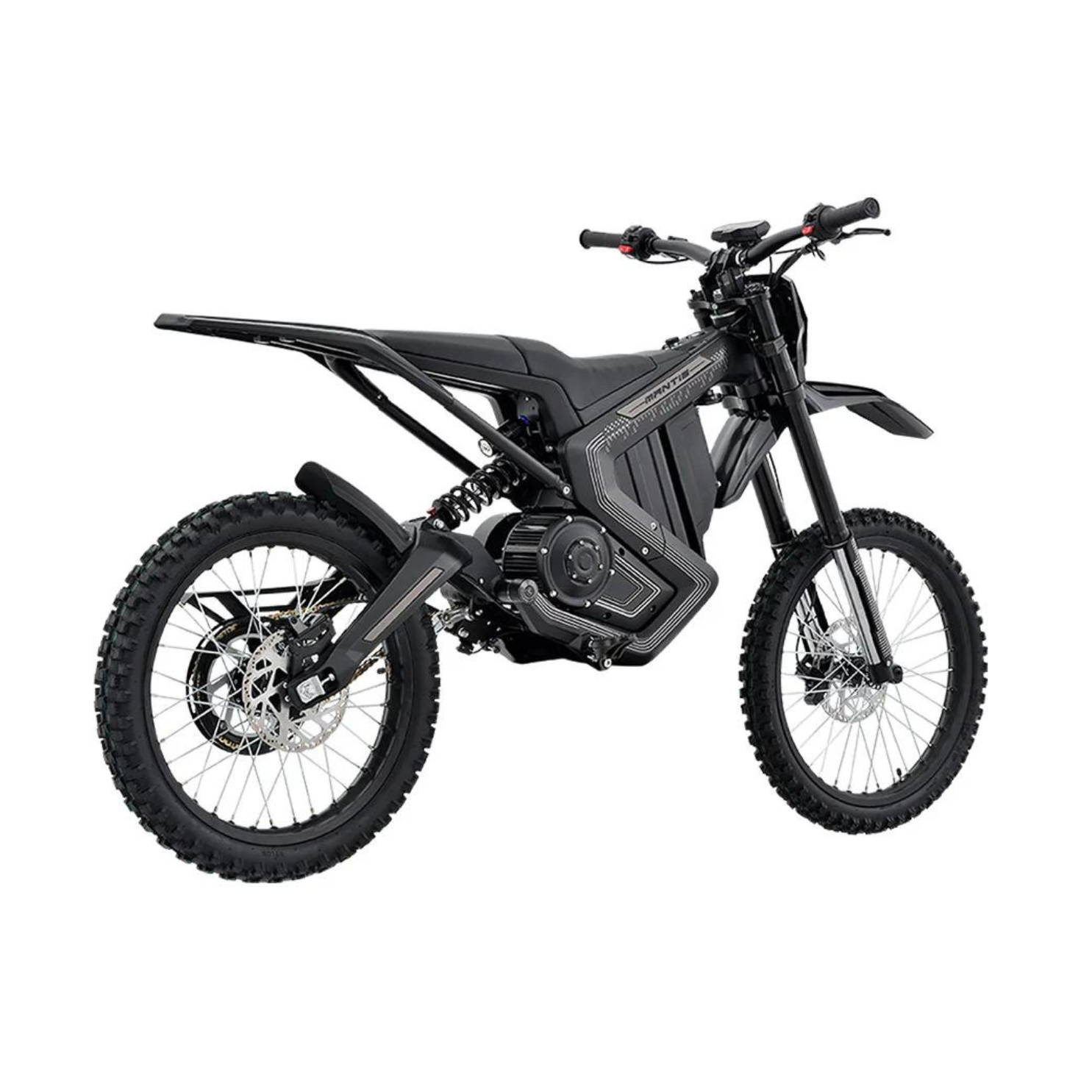

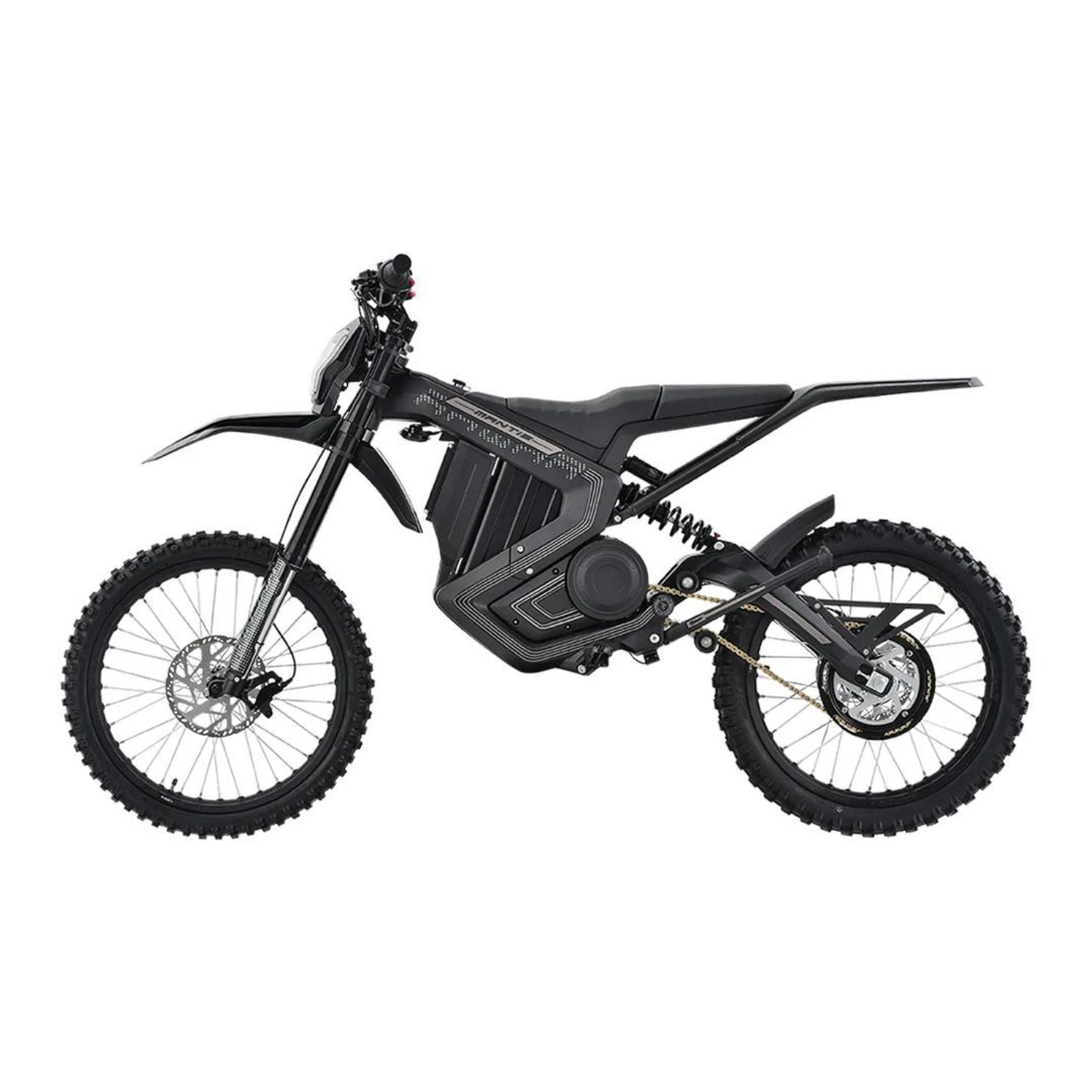

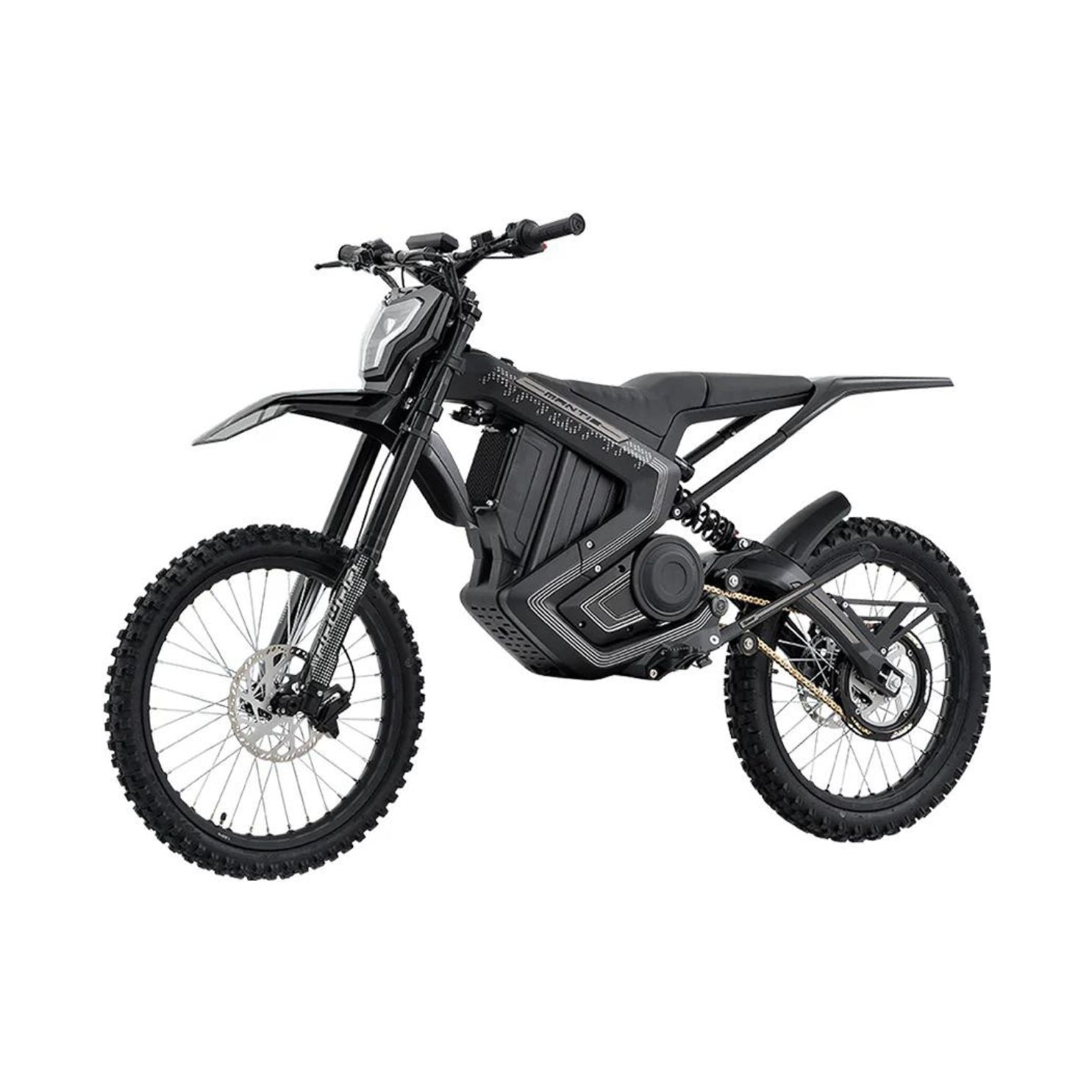

72V Rawrr Mantis Electric All-Terrain Bike

Explore new terrain with ease on the 2024 72V Rawrr Mantis electric all-terrain bike. Perfect for adventurers and thrill-seekers, this bike boasts advanced technology and high-performance features for conquering any off-road terrain.

Upgrading from the model with a 72V 35Ah swappable Samsung battery, the Mantis offers an impressive range of up to 75 miles on a single charge, depending on your chosen mode (eco or sport). Its 9500W max motor power and 50 N.M max torque enable you to effortlessly climb hills and traverse rough terrain.

Crafted with a forged aluminum frame, the Rawrr Mantis strikes the perfect balance between lightweight construction and exceptional durability. It boasts a high max payload capacity of 265 lbs ideal for the larger riders out there.

With hydraulic disc brakes, and app-controlled tuning, the Mantis ensures reliable riding and efficient stopping power in any condition, giving you peace of mind during your daring adventures. Get ready to push your limits and explore the world like never before with the Rawrr Mantis electric all-terrain bike.

Intended For Off-Road Use ONLY

Length: 1935mm
Height: 1200mm
Width: 795mm
Ground Clearance: 310mm
Wheelbase: 1290mm
Seat Height: 850mm
Vehicle Weight/W Battery: 130lbs/160lbs
Front Fork Stroke: 200mm
Rear Shock Absorber Stroke: 75mm
Tire Size(Front): 70/100
Tire Size(Rear): 80/100
Brake Type: Hydraulic Disc Brake
Controller Type: Mantis FOC Controller
Max Payload: 265 ibs
Front/Back Disc Brake: 203mm
Max Torque for driving wheel: 459NM
Energy Recovery: EABS Brake

Battery Type: Lithium
Battery Brand: Samsung
Battery Cap: 72V 35Ah SamsungBattery.
Range: 75Mile (Eco mode 15mph)
Charging Time: 3-6 hours
Charger Input Voltage: AC90/264V
Over-current Protection Value: 120A


Motor Type: PMSM
Regular Motor Power: 5000W
Max Motor Power: 9500W
Regular Torque: 10 N.M
Max Torque: 50 N.M
Motor Rotation Speed: 5100RPM
Motor Efficiency: 94%
Max Motor Rotation Speed: 6000RPM
IP Rating: IPX7
Climbing Ability: 50°+
Cooling Method: Air-Cooled
Insulation Class: H/180℃

Please be aware that many electric bikes sold by Amped Bikes, its partners, and wholesalers are intended exclusively for off-road use at their speed and power factory setting. Bypassing or modifying the bike restrictions does not adhere to proper use and as the owner, you will assume full responsibility and liability. It is important to acknowledge that these vehicles may not adhere to specific national, federal, provincial, and/or local laws or regulations.

As the buyer, it is your responsibility to thoroughly acquaint yourself with any potential restrictions that may apply to the usage of such a product in your specific location. You assume complete liability for the choices you make regarding its utilization and any potential ramifications that may arise as a result.

This vehicle is not an "electric assisted bicycle" as defined by Utah Motor Vehicle Code and is instead a type of motor vehicle and subject to applicable motor vehicle laws if used on public roads or public lands. Your insurance policies may not provide coverage for accidents involving the use of this vehicle. To determine if coverage is provided you should contact your insurance company or agent.
